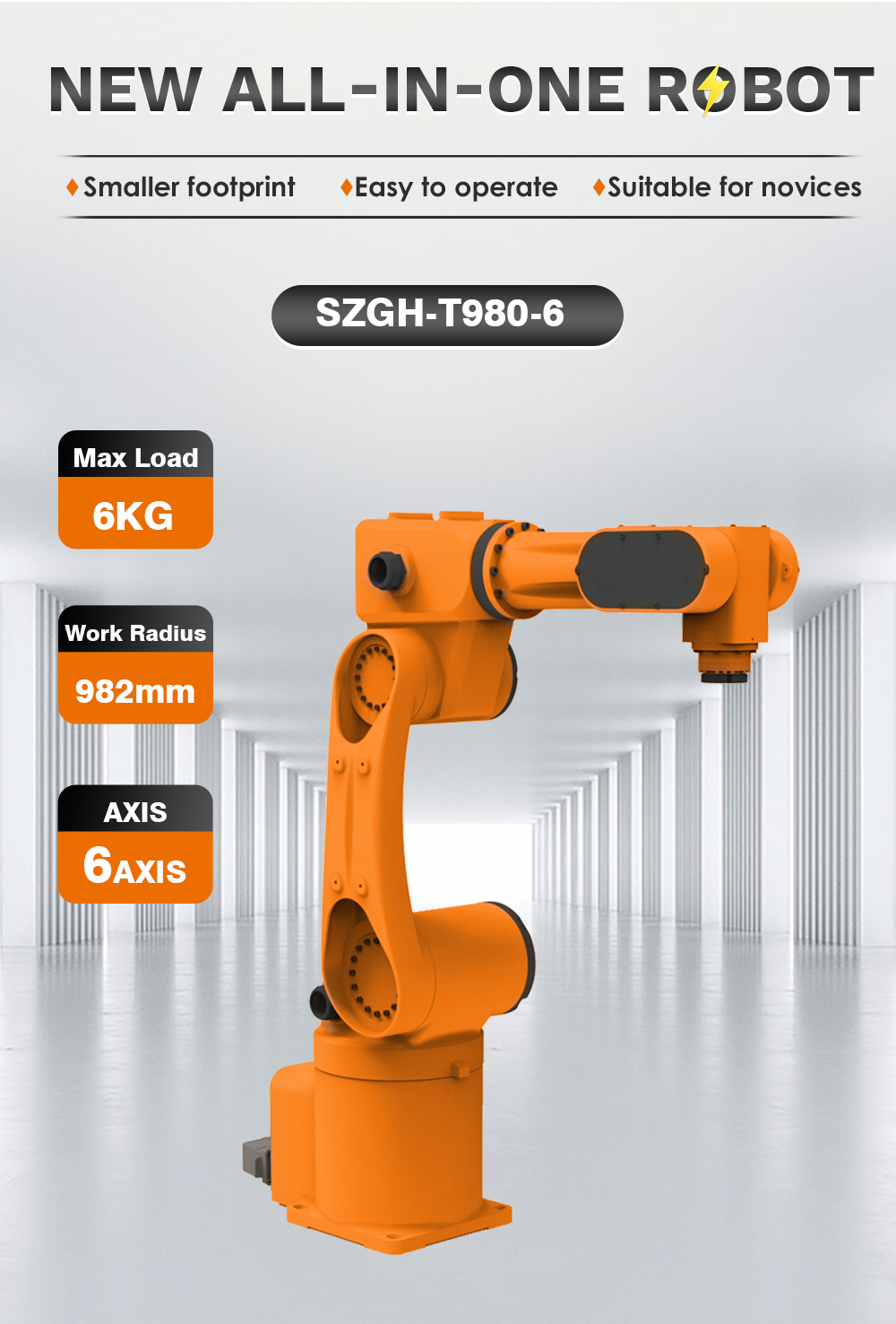

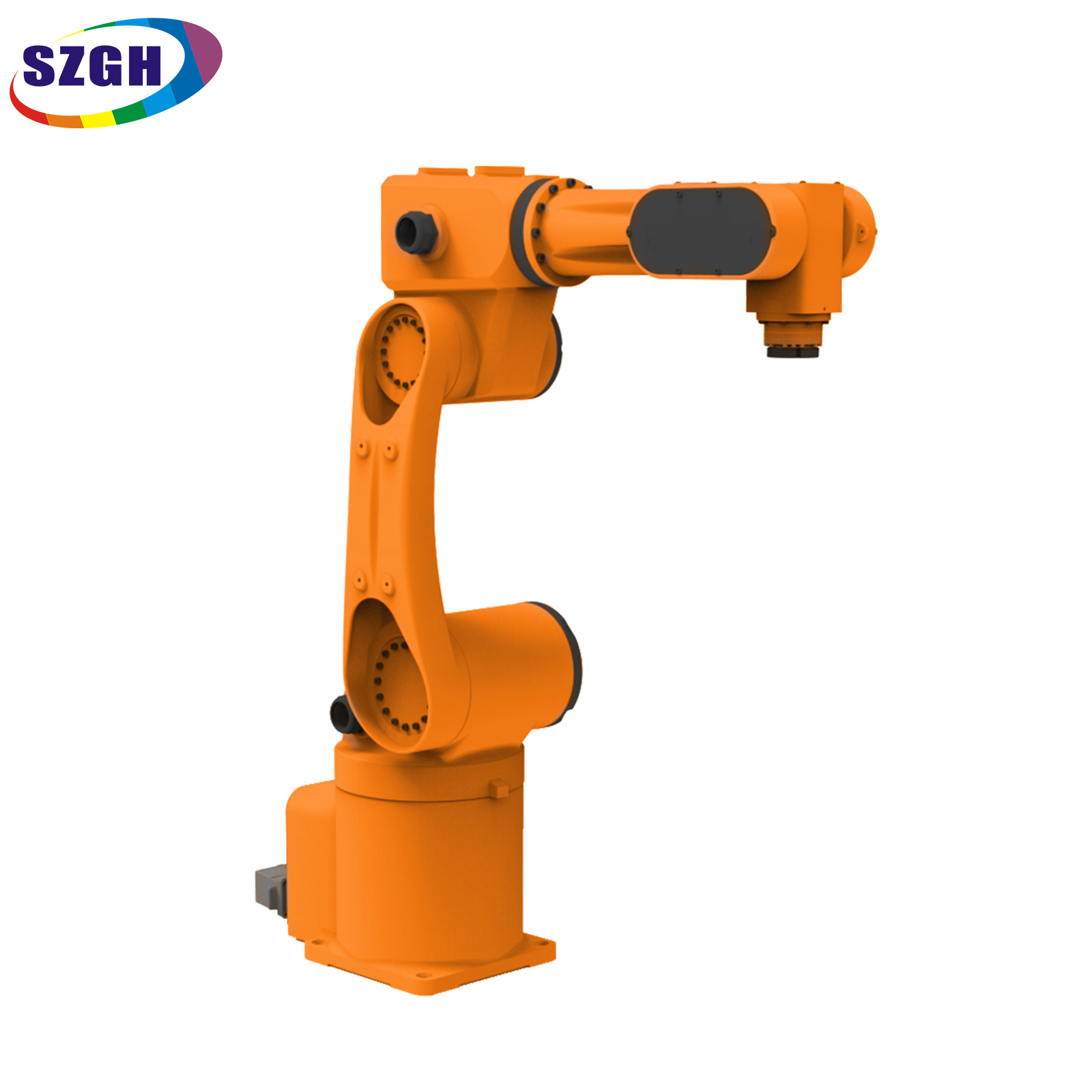

6 Axis SZGH-T980-6 New All-In-One Robot
Applications: Fully automated stamping line, Automatic loading and unloading of saw blades.
Warranty period:2 Years
Technical Service: Lifelong technical service support
The SZGH-T980-6 6-axis All-In-One Robot robot is designed for high-speed and stable performance. With a load capacity of 6 kg and a maximum reach of 982 mm, this robot is engineered to deliver exceptional efficiency and reliability. It is ideal for a wide range of applications, including loading and unloading, palletizing, and stamping.
Series：
Environmental protection
- 产品描述
-
- Commodity name: 6 Axis SZGH-T980-6 New All-In-One Robot
Model: SZGH-T980-6<br/> Applications: Fully automated stamping line, Automatic loading and unloading of saw blades.<br/> Warranty period:2 Years<br/> Technical Service: Lifelong technical service support<br/> The SZGH-T980-6 6-axis All-In-One Robot robot is designed for high-speed and stable performance. With a load capacity of 6 kg and a maximum reach of 982 mm, this robot is engineered to deliver exceptional efficiency and reliability. It is ideal for a wide range of applications, including loading and unloading, palletizing, and stamping.

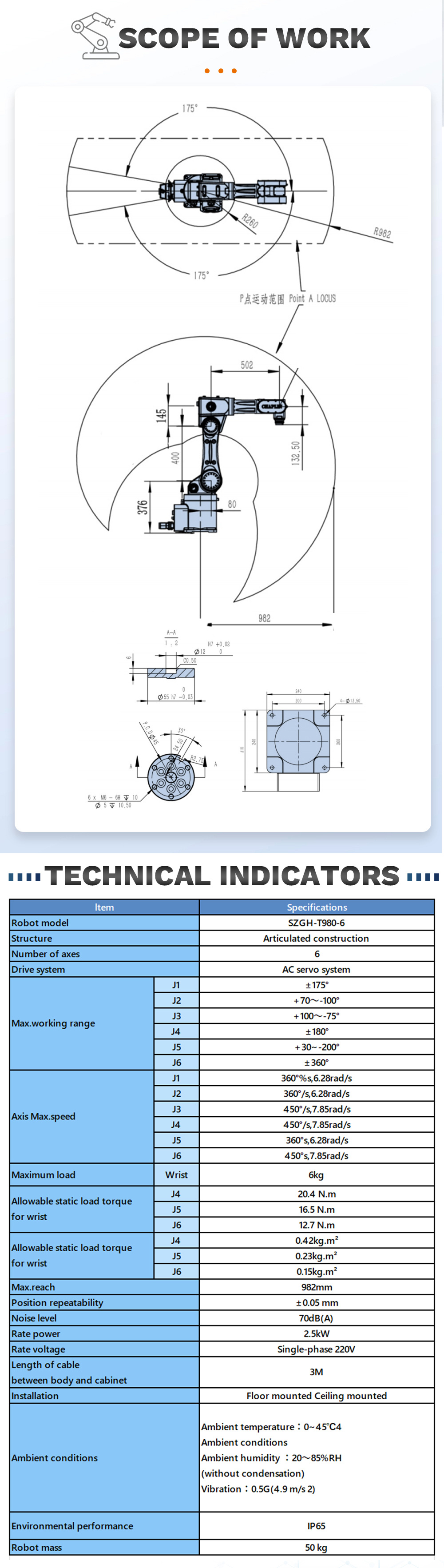

Product Specifications
Model: SZGH-T980-6
Maximum load（Wrist）: 6kg.
Max. reach:982mm.
Structure: Integrated.
Number of axis:6 Axis.
Repeatability:±0.05mm.
Robot mass:50kg.
Ambient temperature:0°C~45°C.
Installation: Floor mounted Ceiling mounted.
Product features
High speed:
Replaces manual palletizing, efficiency increased by 300%;
The main body is made of aluminum with lightweight design; small inertia, 25% faster acceleration;
Stability:
RV reducer has higher accuracy and reduces downtime;
Compatibility:
Applicable material types: cartons, woven bags, plastic barrels, pallets, etc. Optional fixtures: suction cups, grippers, clamps, to achieve multi-material switching;
Supports multiple communication modes, including EtherCAT, Profinet, Ethernet/IP, OPCUACA, etc;

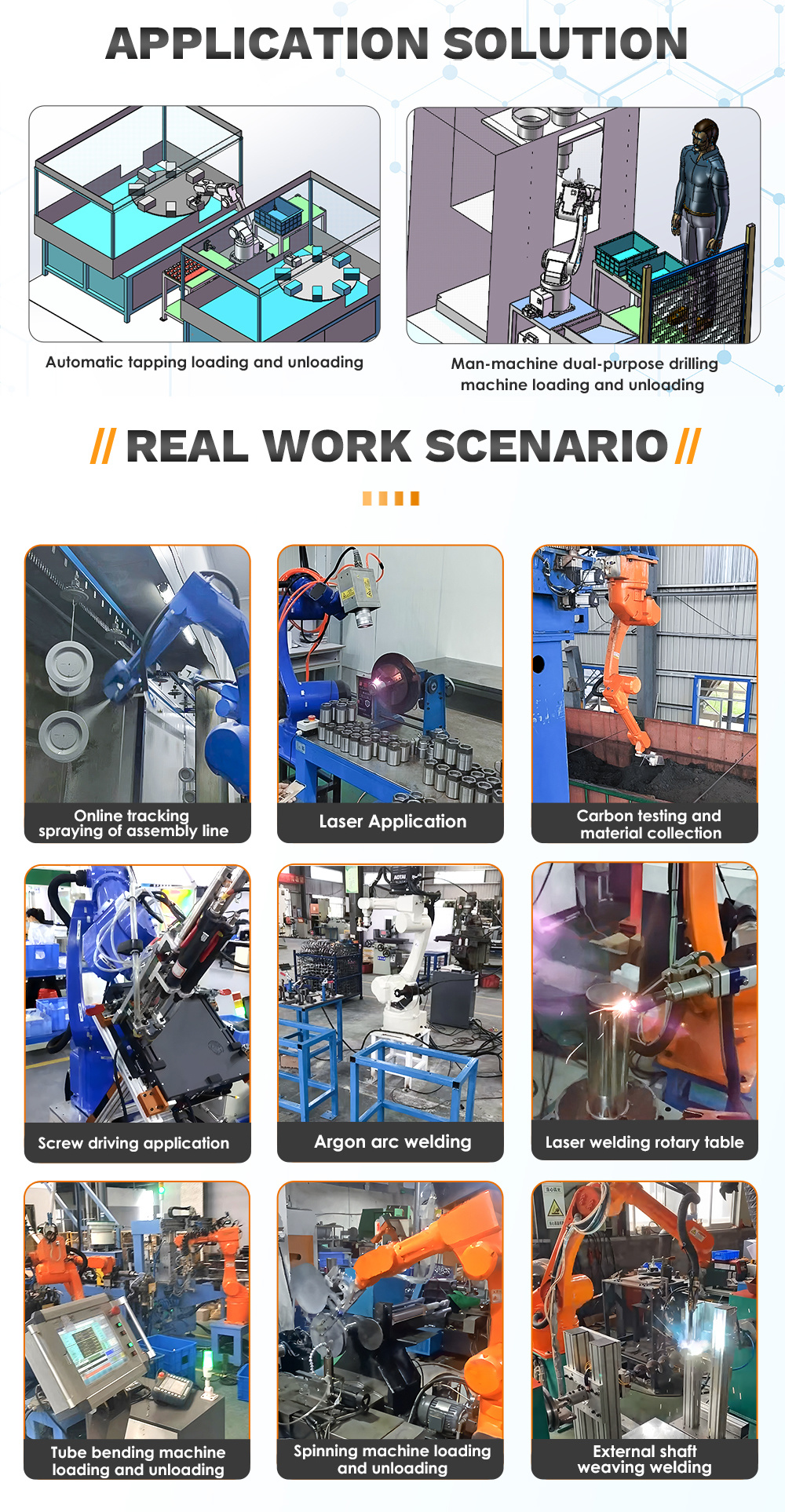

Application scenarios
Automatic tapping loading and unloading, Man-machine dual-purpose drilling machine loading and unloading, etc.
WHY CHOOSE ALL-IN-ONE ROBOT ?- Independent research and development, more suitable for novices. Easy to operate, mature process package configuration, quick to get started.
- IO boards and external axes can be added directly, More mature and stable, Easy maintenance and low daily maintenance cost.
- Strong anti-interference ability and more accurate positioning.
- RV reducer has better accuracy.
- Adopt Japanese Daiden. 20 million times torsion resistance.
- The six-axis motor is rear-mounted, with bevel gear transmission (compact structure, small end inertia and flexible movement.
