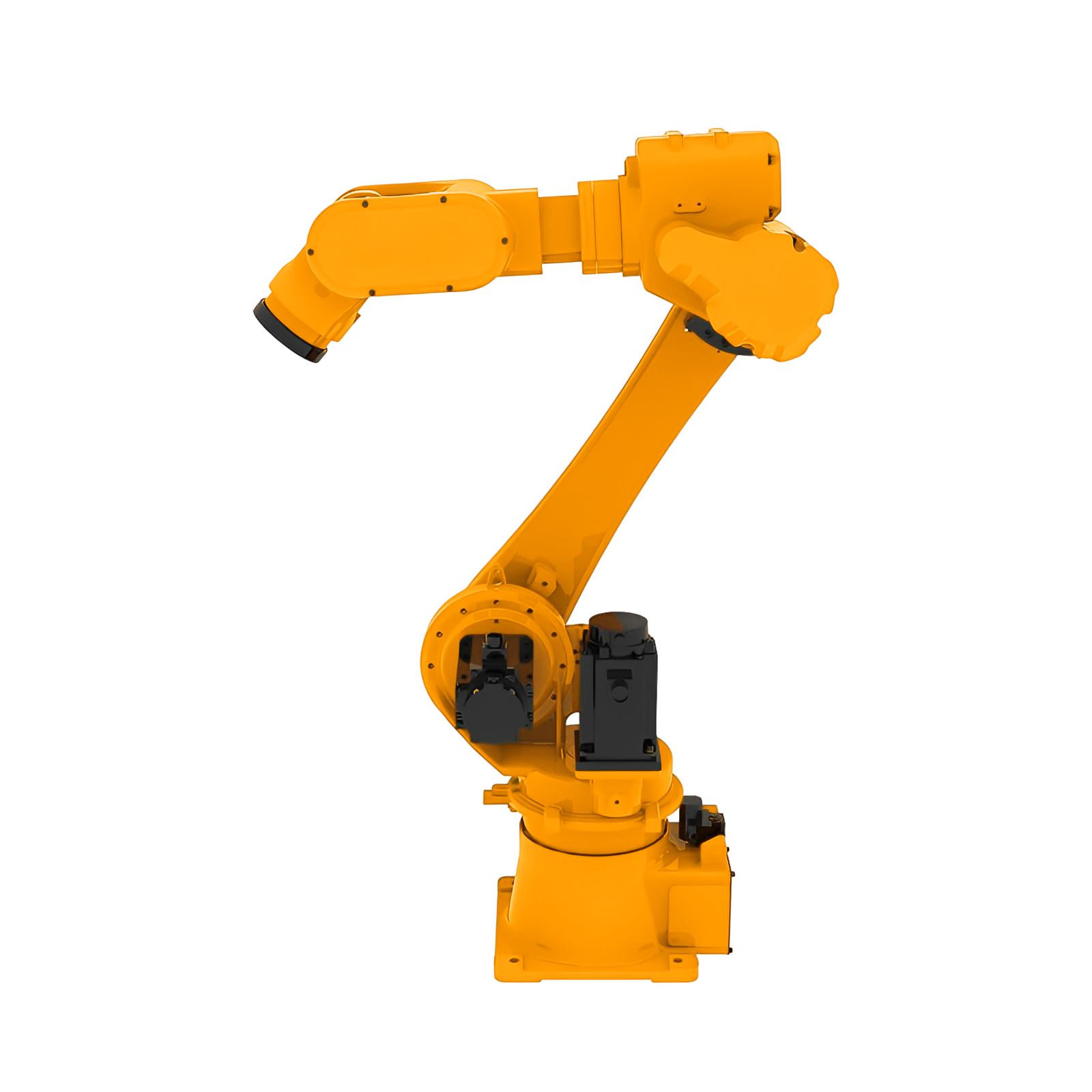

SZGH-I10 Cobots with high performance


Model:SZGH-I10
Main Applications: 3C, automobile, hardware appliances, kitchen and sanitary ware, medical and health, scientific research and education, catering, new retail, daily chemicals, logistics and other industries.
Warranty period:2 years
Technical service:Lifetime technical service support

Series:

Environmental protection

  • 产品描述
    • Commodity name: SZGH-I10 Cobots with high performance

    Model:SZGH-I10<br/> Main Applications: 3C, automobile, hardware appliances, kitchen and sanitary ware, medical and health, scientific research and education, catering, new retail, daily chemicals, logistics and other industries.<br/> Warranty period:2 years<br/> Technical service:Lifetime technical service support

    Model:SZGH-I10
    Payload:10kg
    Reach:1350mm
    Average power:500W
    Number of axes:6
    Repeatability:±0.03mm
    Weight:38.5kg
    Mounting type:floor,ceiling,wall
    Ambient temperature:0°C~50°C
    Main Applications: 3C, automobile, hardware appliances, kitchen and sanitary ware, medical and health, scientific research and education, catering, new retail, daily chemicals, logistics and other industries.
    Warranty period:2 years
    Technical service:Lifetime technical service support



    SZGH-I10
      Payload 10KG
      Reach 1350mm
      Average power 500W
      Number of axes 6
      Repeatability ±0.02mm
      Axis 1 ±360°
      Axis 2 ±360°
    Max motion range Axis 3 ±360°
      Axis 4 ±360°
      Axis 5 ±360°
      Axis 6 ±360°
      Axis 1 178°/sec
      Axis 2 178°/sec
    Max speed Axis 3 223°/sec
      Axis 4 178°/sec
      Axis 5 237°/sec
      Axis 6 237°/sec
      Weight ≈38.5kg
      Mounting type Floor, Ceiling, Wall
      Ambient temperature 0°C~50°C
