6 Axis SZGH-T990-B-6 General Robot
Series：
Environmental protection
- 产品描述
-
- Commodity name: 6 Axis SZGH-T990-B-6 General Robot
Discover high-precision industrial robots designed for automated welding, handling, and machine tending. Featuring heavy payload capacity, flexible 6-axis articulation, and ±0.02mm repeatability, our robotics solutions deliver maximum productivity and reliability for smart factory automation. Request a free quote today!

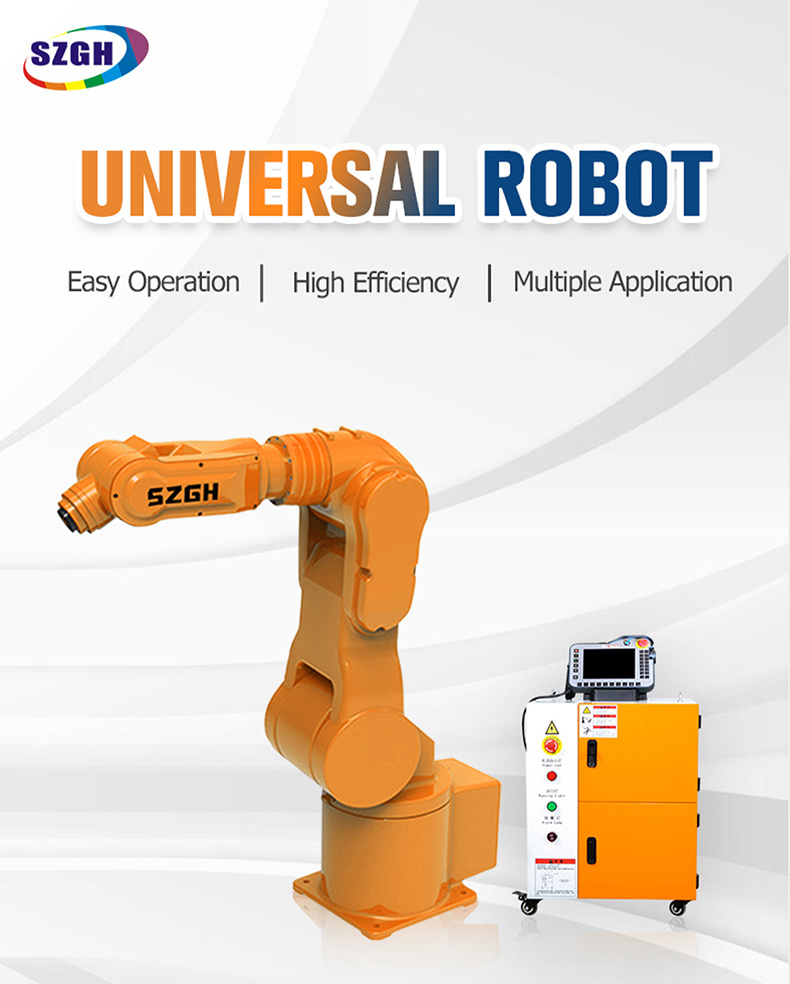

SZGH-T990-B-6 Universal 6-Axis Industrial Robot Arm for Material Handling, Welding & Automation
一、Product Description:
The SZGH-T990-B-6 is a versatile and high-precision 6-axis articulated industrial robot designed to optimize multi-industry automated manufacturing. Featuring a 6 kg payload and a 990 mm working radius, this universal robot arm delivers high accuracy ($\pm 0.03\text{ mm}$ repeatability) and high-speed motion across all six axes.
Equipped with an intuitive robot controller that supports up to 12 axes of linkage, the SZGH-T990-B-6 seamlessly integrates with external positioners, linear tracks, grippers, and suction systems. Whether used for CNC machine tending, laser welding, stamping, or palletizing, it offers an easy-to-operate, highly efficient, and reliable solution for industrial automation.
Key Features & Highlights:
High Precision & Speed: Repeatability of $\pm 0.03\text{ mm}$ with maximum joint speeds up to $225^\circ/\text{s}$.
Flexible Installation: Supports ground, bracket, and ceiling mounting to adapt to various workspace layouts.
Expanded Motion Capabilities: Compatible with 1-axis, 2-axis, and 3-axis positioners and walking tracks.

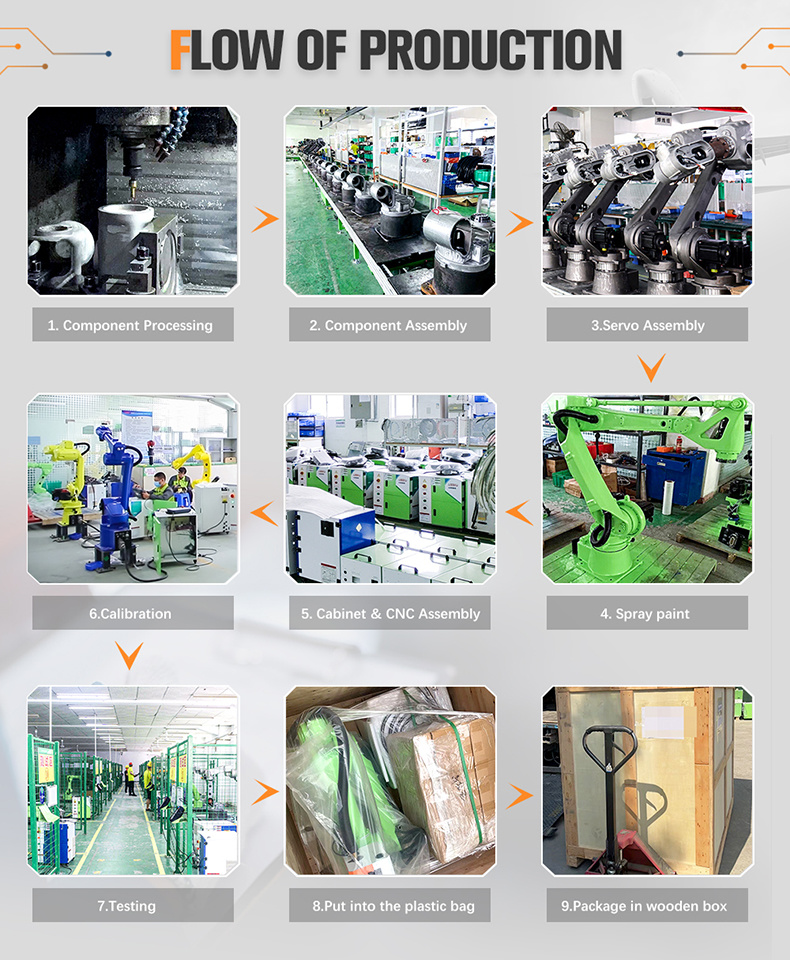

End-to-End Quality Guarantee: Manufactured under strict quality controls—from precision component processing and calibration to comprehensive factory testing.
二、Product Specifications

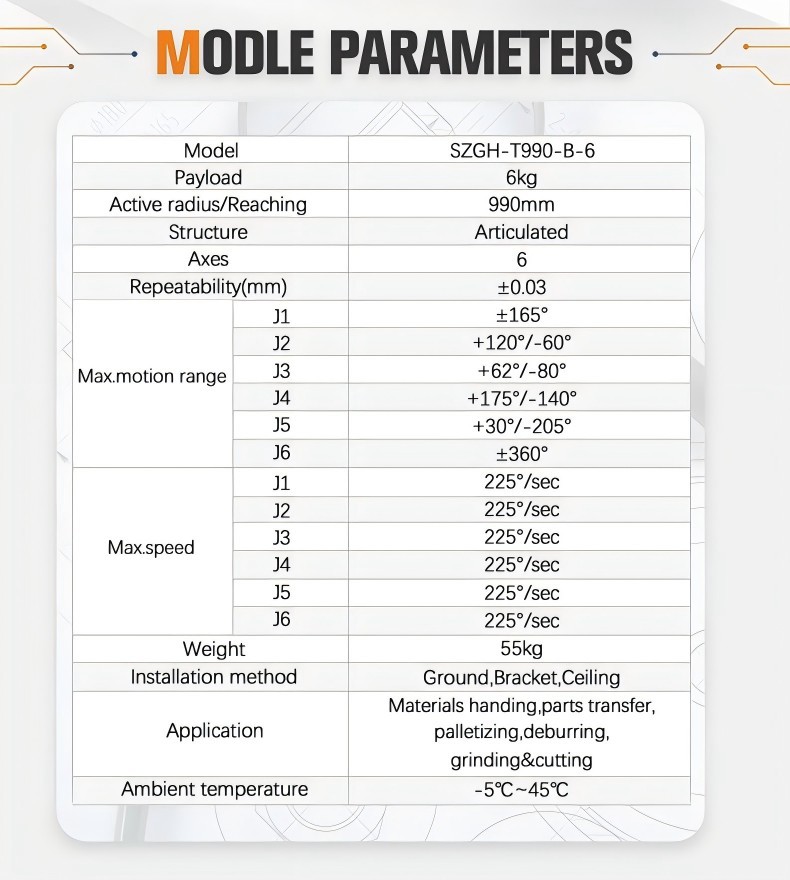

MODLE PARAMETERS
Model
SZGH-T990-B-6
Payload
6kg
Reaching
990mm
Structure
Articulated
Axes
6
Repeatability(mm)
±0.03
Max.motion range
J1
±165°
J2
+120/-60°
J3
+62/-80°
J4
+175/-140°
J5
+30/-205°
J6
±360°
Max.speed
J1
225°/sec
J2
225°/sec
J3
225°/sec
J4
225°/sec
J5
225°/sec
J6
225/sec
Weight
55kg
Installation method
Ground,Bracket,Ceiling
Application
Materials handing,parts transfer,
palletizing,deburring,
grinding&cuttingAmbient temperature
-5℃~45℃
三、Application Cases & Customized Solutions
1. Versatile Industrial Applications
Material Handling & Transfer: Pick-and-place operation, parts transfer, CNC material loading and unloading.
Welding & Cutting: High-precision laser welding and laser cutting.
Surface Finishing: Deburring, grinding, polishing, and robot painting (e.g., doors/panels).
Packaging & Forming: Box handling, palletizing cases, injection molding, and metal stamping.
2. Turnkey Automation & Auxiliary Equipment
Positioners: 1-axis (F-frame, platform type), 2-axis (U-type, P-type), and 3-axis (horizontal/vertical rotary).
Linear Auxiliary Axes: Industrial robot walking tracks for extended operational reach.
End-Effectors: Customized pneumatic grippers and vacuum suction systems.

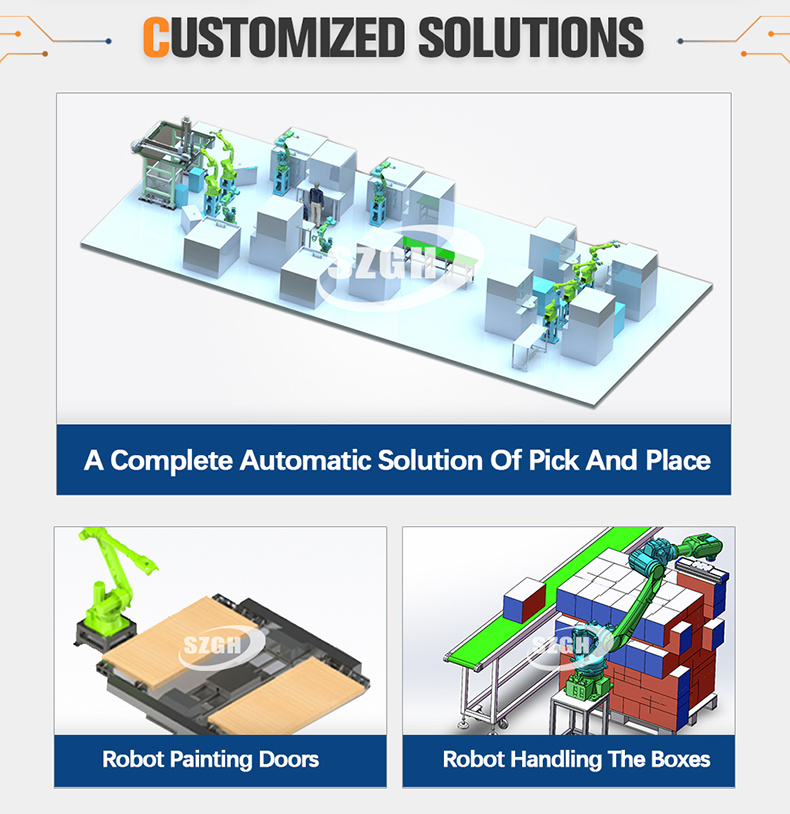

Complete Automated Lines: Customized turnkey solutions for pick-and-place lines and full factory automation.
四、FAQ
Q1: What is the maximum payload and working reach of the SZGH-T990-B-6?
The SZGH-T990-B-6 has a maximum payload capacity of 6 kg and an active working reach of 990 mm.
Q2: What mounting options are available for this robot arm?
It supports multiple mounting configurations, including ground-mounted, bracket-mounted, or ceiling-suspended installation, allowing for flexible factory layout integration.
Q3: Can the SZGH controller manage external axes like positioners or linear tracks?
Yes, the SZGH robot controller supports up to 12 axes of synchronized linkage, enabling smooth control over additional motion axes such as positioners and walking tracks.
Q4: What custom automation solutions can SZGH provide?
We offer end-to-end customized automation solutions, including customized end-effectors (grippers/suckers), positioners, walking tracks, and complete automated pick-and-place or processing production lines.
